1 、 clean motor and wind wheel, filter and inside of casing.

　　2、向轉動部位填加適量的光滑油，以確保聯軸節及軸承的靈敏性及穩定性。

　　2 fill the rotating parts with proper amount of smooth oil to ensure the sensitivity and stability of the couplings and bearings.

　　3、切斷主電源，做好相應的標示，檢查電機接地線能否良好。

　　3, cut off the main power supply, do the corresponding marking, check whether the motor grounding wire is good.

　　4、檢查與改換各接合面間的墊片和密封填料。

　　4. Check and change the gasket and seal between the joints.

　　5、檢查各局部螺絲及聯軸，并緊固好。

　　5, check the local screws and shafts, and fasten.

　　6、檢查調理閥機械開閉動作能否牢靠、靈敏，開閉角度標志明晰。

　　6, check the mechanical valve opening and closing action can be firm and sensitive, open and close angle mark clear.

　　7、檢測電動機的絕緣電阻能否契合規則，檢查主回路觸點。若觸頭嚴重燒蝕(觸頭點磨損原厚度的三分之一)，應改換觸頭。

　　7. Check whether the insulation resistance of the motor fits the rules and check the main circuit contacts. If the contact is severely ablated (1/3 of the contact point is worn to the original thickness), the contact shall be changed.

　　8、調整皮帶的松緊度 消防排煙風機，用手盤動風輪，察看轉動有無晃動。

　　8, adjust the tightness of the belt, fire smoke exhaust fan, use the hand wheel to move the wind wheel, see whether the rotation or not.

　　9.管段組合后45度角切邊外部接縫,需貼鋁箔膠帶封合板材外殼面,每邊寬度不少于20mm.用角尺、鋼卷尺檢查調整垂直度及對角線偏向,并契合標準請求;

　　The 9. section after the combination of the 45 degree angle trimming external joint, aluminum foil sealing tape to an outer surface of each side plate, a width of not less than 20mm. square, steel tape to check and adjust the verticality and diagonal bias, and in accordance with the standard request;

　　10.鋁箔復合保溫風管所用粘合劑須按板材廠商認定的專用粘合劑,如另行采購粘合劑,必需做銜接效果比照實驗,并經監理、板材商檢查、認可前方可運用;

　　10. aluminum foil insulation special adhesive binder used according to the manufacturer identification plate of wind pipe, such as separately purchase brand adhesives, must do the convergence effect contrast experiment, and the supervision and inspection, Accreditation Board business before use;

　　11.風管的圓弧面或折線面完成下料并折壓成型后,應與平面板預組合無誤后在涂刷粘合劑,以保證管件的幾何外形尺寸及觀感。

　　11. the wind pipe of the arc surface or broken line to complete the material and fold, forming, should be combined with the flat plate, after the error in brushing adhesive, in order to ensure the geometry, size and appearance of the pipe.

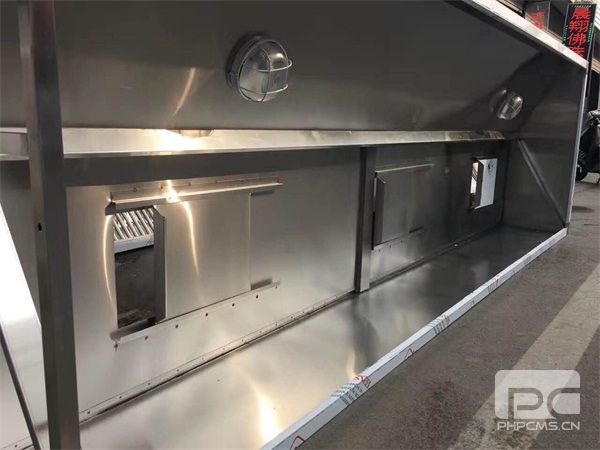

　　濟南排煙罩 http://shanghaizhuangxiu8.com/擁有嚴謹?shù)墓ぷ鲬B(tài)度，熟練的工作技能，將確保任務準確、的完成。

　　Ji'nan smoke hood has a strict working attitude, skilled work skills, will ensure that the task is accurate and efficient completion.
